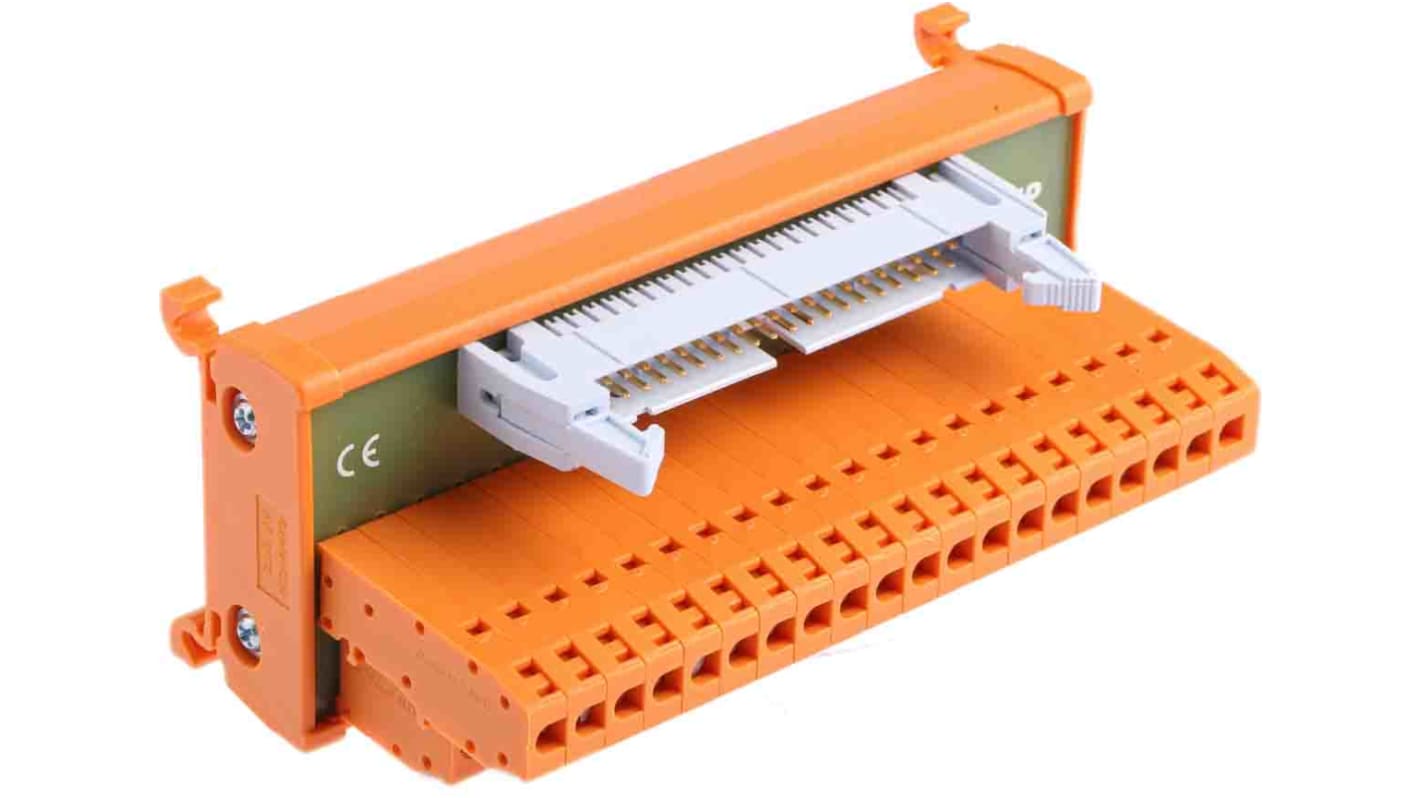

RS PRO, 40 Pole Flat Ribbon Cable Connector, Male Interface Module, DIN Rail Mount

  • RS Stock No. 665-9670
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Interface Modules

Screw-clamp connection
Male plug - flat ribbon cable connection EN 60 603-13/DIN 41651
DIN EN 50178; DIN VDE 0110, pollution degree 2
Ejector mechanism
Compact design, clear terminal labelling and simple assembly
Insulating stripping length 7mm
Alternative to pure individual wire approach

Specifications
Attribute Value
Gender Male
Wire Size 22 → 14 AWG
Number of Contacts 40
Connector Type Flat Ribbon Cable
Mounting Type DIN Rail Mount
Test Proof Voltage 0.67kV ac
Voltage Rating 125 V ac/dc
Current Rating 1A
Cable CSA 0.2 → 2.5mm²
Dimensions 113 x 61 x 47mm
Depth 47mm
Length 113mm
Minimum Operating Temperature -20°C
Maximum Operating Temperature +50°C
Width 61mm
21 In Global stock for delivery within 4 - 8 working days
Price Each
PHP 3,736.47
(exc. VAT)
PHP 4,184.85
(inc. VAT)
units
Per Unit
1 +
PHP3,736.47
