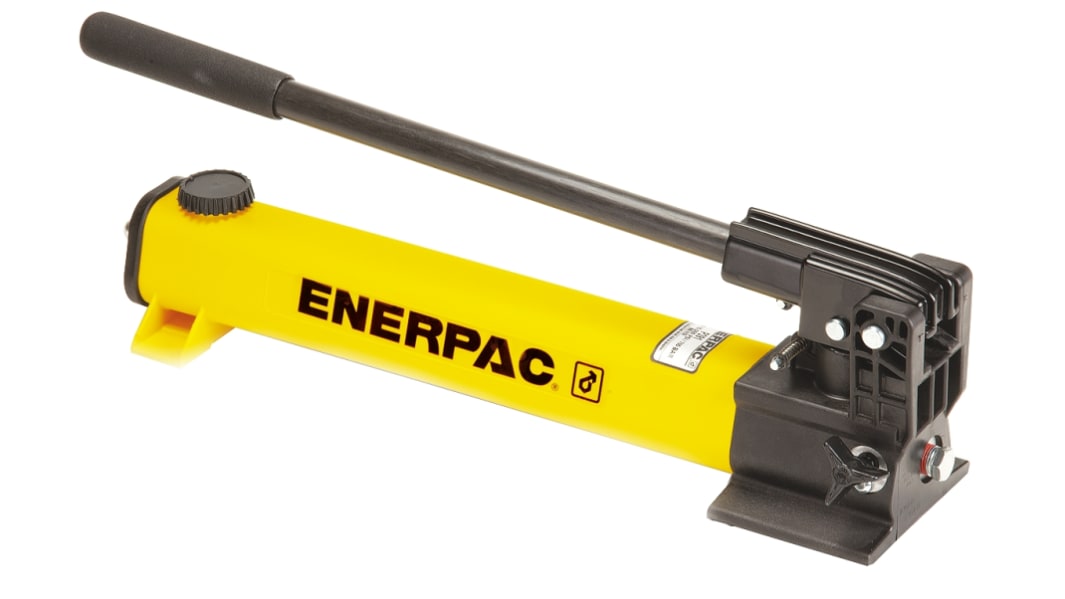

Enerpac P39 ULTIMA Series, Single Speed, Hydraulic Hand Pump, 655cm³, 20.6mm Cylinder Stroke, 700 bar
- RS Stock No.:
- 283-1272
- Mfr. Part No.:
- P39
- Manufacturer:
- Enerpac
11 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price Each
PHP40,453.79
(exc. VAT)
PHP45,308.24
(inc. VAT)
| Units | Per Unit |
| 1 + | PHP40,453.79 |
- RS Stock No.:
- 283-1272
- Mfr. Part No.:
- P39
- Manufacturer:
- Enerpac
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- US
Product Details
Steel Hand Pump
The two speed model is recommended for applications where cylinder pistons must advance rapidly to load contact, and applications where greater oil capacities are required, such as multiple cylinder hook-ups
Warning
High pressure hydraulic equipment can work at extremely high pressure and careful attention should be paid to working pressure when choosing accessories.
Pumps- Hand Operated
Hand operated hydraulic pumps and pump sets with a maximum working pressure of 700 bar. The pumps hydraulic outlet port thread size is 3/8in x 18NPT.
Specifications
Attribute | Value |
|---|---|
| Maximum Operating Pressure | 700 bar |
| Single Or Two Speed | Single |
| Usable Oil Capacity | 655cm³ |
| Cylinder Stroke | 20.6mm |
| Displacement per Stroke 2nd Stage | 2.62cm³ |
| Maximum Handle Effort | 50kg |
| Dimensions | 520 x 133 x 119mm |
| Weight | 5.9kg |
| Height | 119mm |
| Width | 133mm |
| Length | 520mm |
