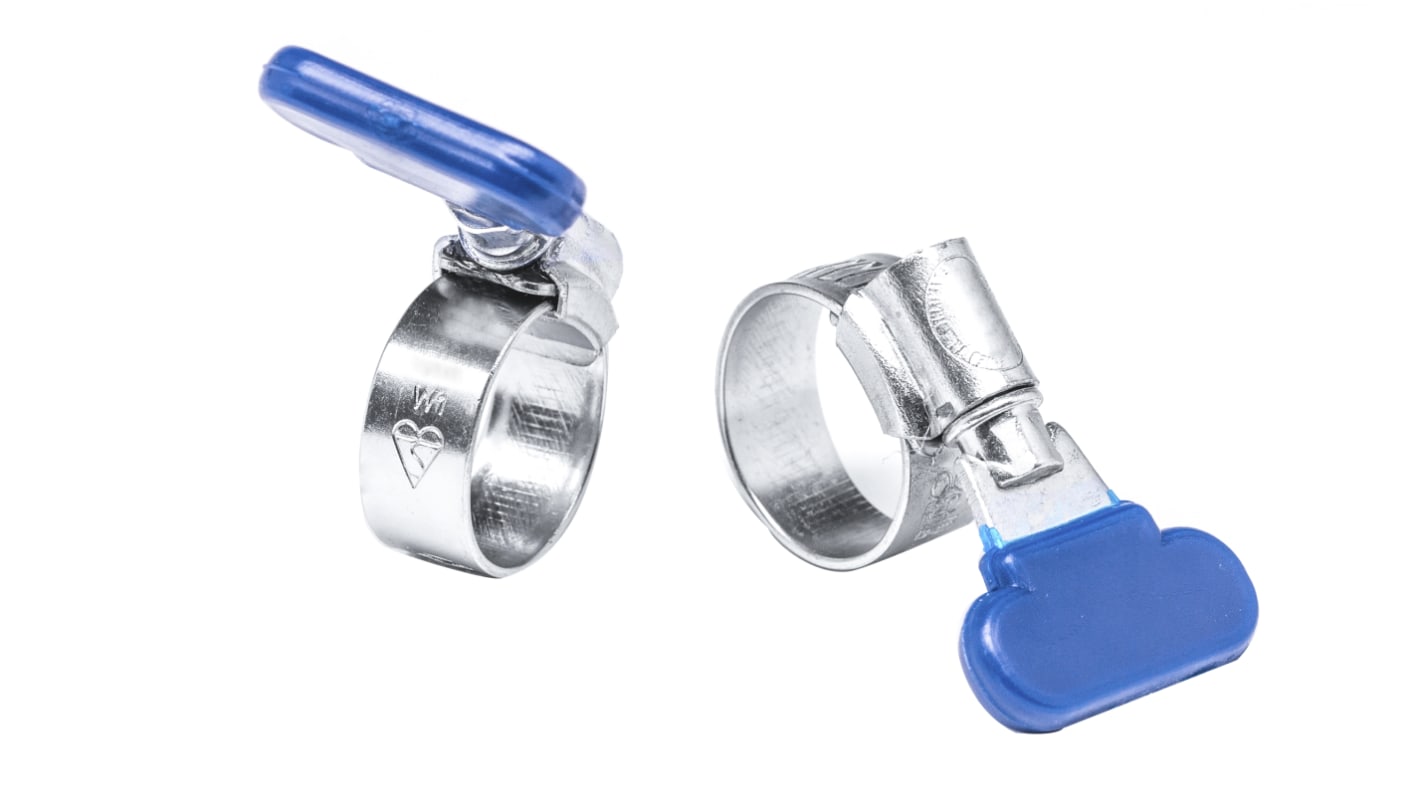

RS PRO Zinc-Plated Mild Steel Thumb Screw Worm Drive, 9.5mm Band Width, 13 → 20mm ID
- RS Stock No.:
- 145-0289
- Manufacturer:
- RS PRO
192 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price 1 Bag of 5
PHP432.87
(exc. VAT)
PHP484.81
(inc. VAT)
| Bag(s) | Per Bag | Per Unit* |
| 1 + | PHP432.87 | PHP86.574 |
| *price indicative | ||
- RS Stock No.:
- 145-0289
- Manufacturer:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
RS Pro Worm Drive Hose Clips
These hose clips are made from the finest cold rolled steel with a special surface treatment. The band is processed to erase any burrs from the edges and to increase strength ensuring a high destructive torque. It protects soft hoses from damage during installation, providing exterior hose wall protection. The housing is riveted for extra strength and provides smooth contact with the hose.
Standard worm-drive hose clips to BS5315 available in Mild Steel
Clips are marked with BSI kitemark and appropriate BS size number
Recommended tightening torque is dependent upon clip size as follows:
12-20 mm=4.5 Nm 22-25 mm=5.6 Nm 30-40 mm=6.8 Nm 50 mm=7.9 Nm
12-20 mm=4.5 Nm 22-25 mm=5.6 Nm 30-40 mm=6.8 Nm 50 mm=7.9 Nm
Specifications
Attribute | Value |
|---|---|
| Inside Diameter | 13 → 20mm |
| Clip Type | Worm Drive |
| Material | Zinc-Plated Mild Steel |
| Inside Diameter Minimum | 13mm |
| Inside Diameter Maximum | 20mm |
| Band Width | 9.5mm |
| Screw/Bolt Head | Thumb Screw |
