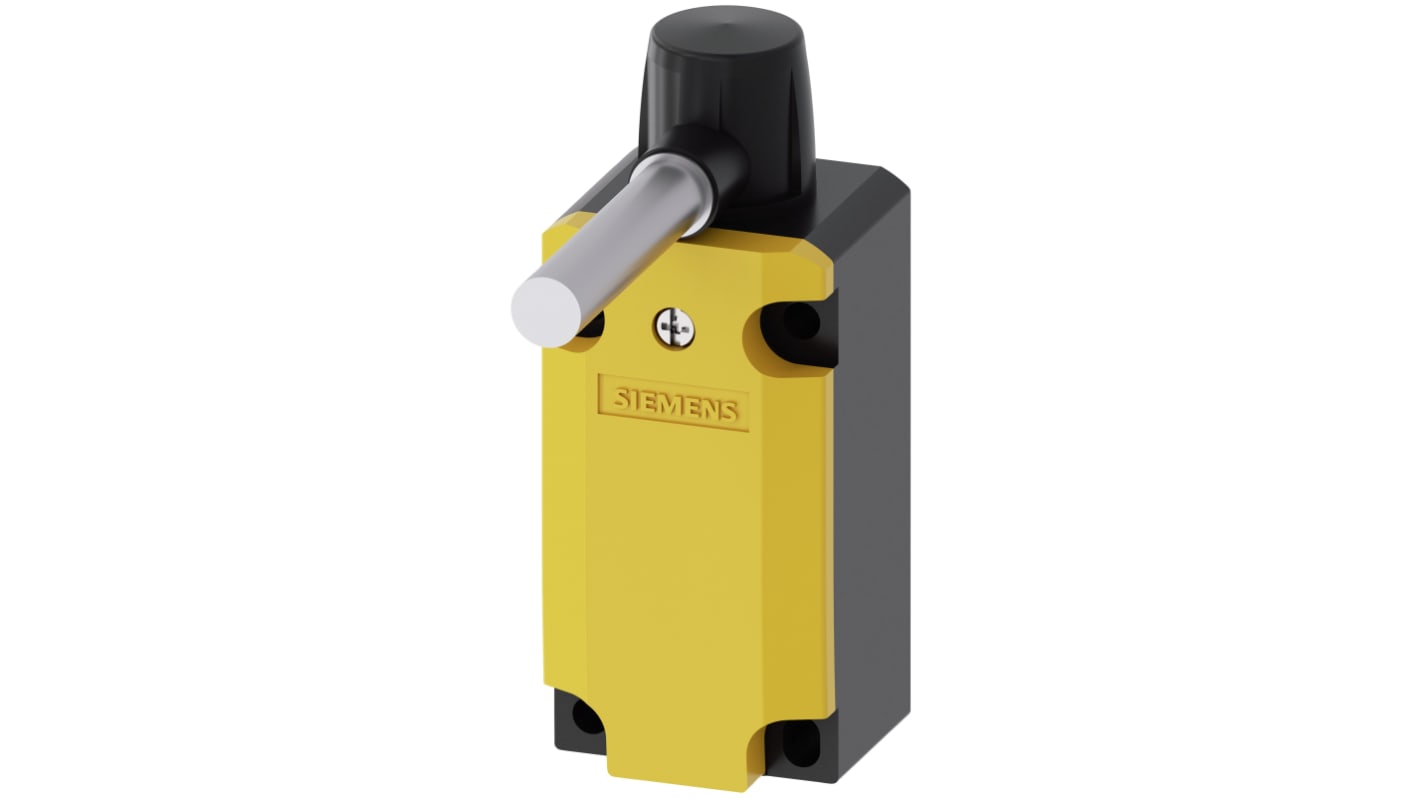

Siemens 3SE5 Safety Hinge Switch, 2NO/NC
- RS Stock No.:
- 691-8190
- Mfr. Part No.:
- 3SE5112-0LU22
- Manufacturer:
- Siemens
Temporarily out of stock - back order for despatch 09/05/2024, delivery within 10 working days from desptach date
Added
Price Each
PHP4,898.38
(exc. VAT)
PHP5,486.19
(inc. VAT)
| Units | Per Unit |
| 1 - 5 | PHP4,898.38 |
| 6 + | PHP4,800.57 |
- RS Stock No.:
- 691-8190
- Mfr. Part No.:
- 3SE5112-0LU22
- Manufacturer:
- Siemens
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
3SE5 Hinge Switch
The SIRIUS 3SE5 Series hinge switch is designed for monitoring hinged doors and flaps. These mechanical position switches offer excellent protection from tampering thanks to the fixed, positive pivoting point connection between switch and door hinge. They have a standard enclosure according to EN 50047 and EN 50041 and a very small operating angle. Simultaneous shut down and signalling is provided in addition by the snap-action contacts.
For the mechanical monitoring of protective doors or flaps
Protection up to Cat 4 (EN 954-1), Up to SIL 3 IEC 62061
Snap on contacts
Simple, fast wiring offers approx 20 to 25% reduction in connection time
Cable entry M20 x 1.5
Actuator head can be rotated in 22.5° increments
Protection up to Cat 4 (EN 954-1), Up to SIL 3 IEC 62061
Snap on contacts
Simple, fast wiring offers approx 20 to 25% reduction in connection time
Cable entry M20 x 1.5
Actuator head can be rotated in 22.5° increments
Note
Actuators are supplied, accessories are for spares.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Hinge Switch
Specifications
Attribute | Value |
|---|---|
| Range | SIRIUS |
| Series | 3SE5 |
| Lock Style | Hinge |
| Normal State Configuration | 2NO/NC |
| Maximum AC Voltage | 400V |
| Maximum DC Voltage | 230V |
| Shaft Length | 50mm |
