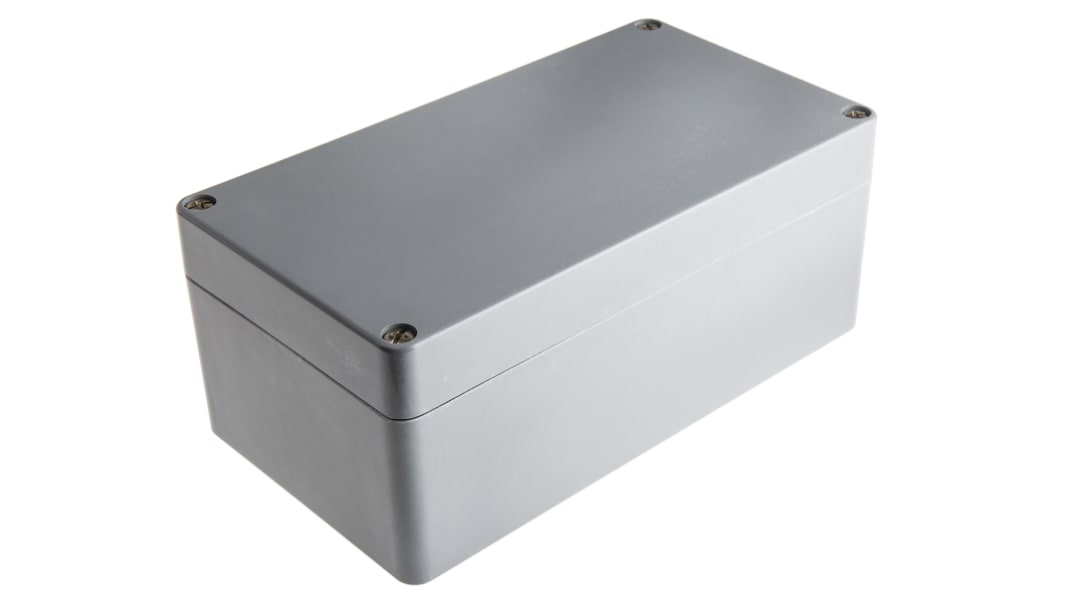

Fibox Euronord II Series Grey Polyester Enclosure, IP66, IP67, Grey Lid, 220 x 120 x 90mm
- RS Stock No.:
- 507-5504
- Mfr. Part No.:
- P 122209 ENCLOSURE
- Manufacturer:
- Fibox
8 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days
45 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price Each
Was PHP9,756.00
You pay
PHP6,341.40
(exc. VAT)
PHP7,102.37
(inc. VAT)
| Units | Per Unit |
| 1 - 24 | PHP6,341.40 |
| 25 - 124 | PHP6,151.16 |
| 125 + | PHP5,966.62 |
- RS Stock No.:
- 507-5504
- Mfr. Part No.:
- P 122209 ENCLOSURE
- Manufacturer:
- Fibox
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- FI
Product Details
FIBOX Euronord II Polyester Enclosure
Euronord range of enclosures from Fibox are designed to house DIN Rail-mounted terminal blocks and various types of sensors. The outer surface is free of ’gate marks’ creating a smooth area for labels, decals or screen printing. Cover screws fully tighten in 4 revolutions, are held captive, but are still removable.
Features and Benefits
• Temperature range -40°C to +80°C (continuous), -50 to +120°C (short term)
• Designed to house DIN Rail-mounted terminal blocks and various types of sensors
• IP 66/67
• Base colour RAL 7001
• Designed to house DIN Rail-mounted terminal blocks and various types of sensors
• IP 66/67
• Base colour RAL 7001
(IP) Ingress Protection and what it means?
IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.
FAQ’s
Can the box be used outside?
• Yes, Euronord series enclosures have IP66 / IP67 rating
Can you purchase mounting plates separately?
• No, Euronord mounting plates are not available separately
What is supplied?
• Enclosure, cover with EPDM gasket and stainless steel cover screws
• Yes, Euronord series enclosures have IP66 / IP67 rating
Can you purchase mounting plates separately?
• No, Euronord mounting plates are not available separately
What is supplied?
• Enclosure, cover with EPDM gasket and stainless steel cover screws
Standards
UL 508, NEMA Type 1, 4, 4X, 12 and 13.
Specifications
Attribute | Value |
|---|---|
| Body Material | Polyester |
| External Length | 220 mm |
| External Height | 90 mm |
| External Width | 120 mm |
| External Dimensions | 220 x 120 x 90mm |
| IP Rating | IP66, IP67 |
| Colour | Grey |
| Lid Colour | Grey |
| Shielded | No |
| Series | Euronord II |
