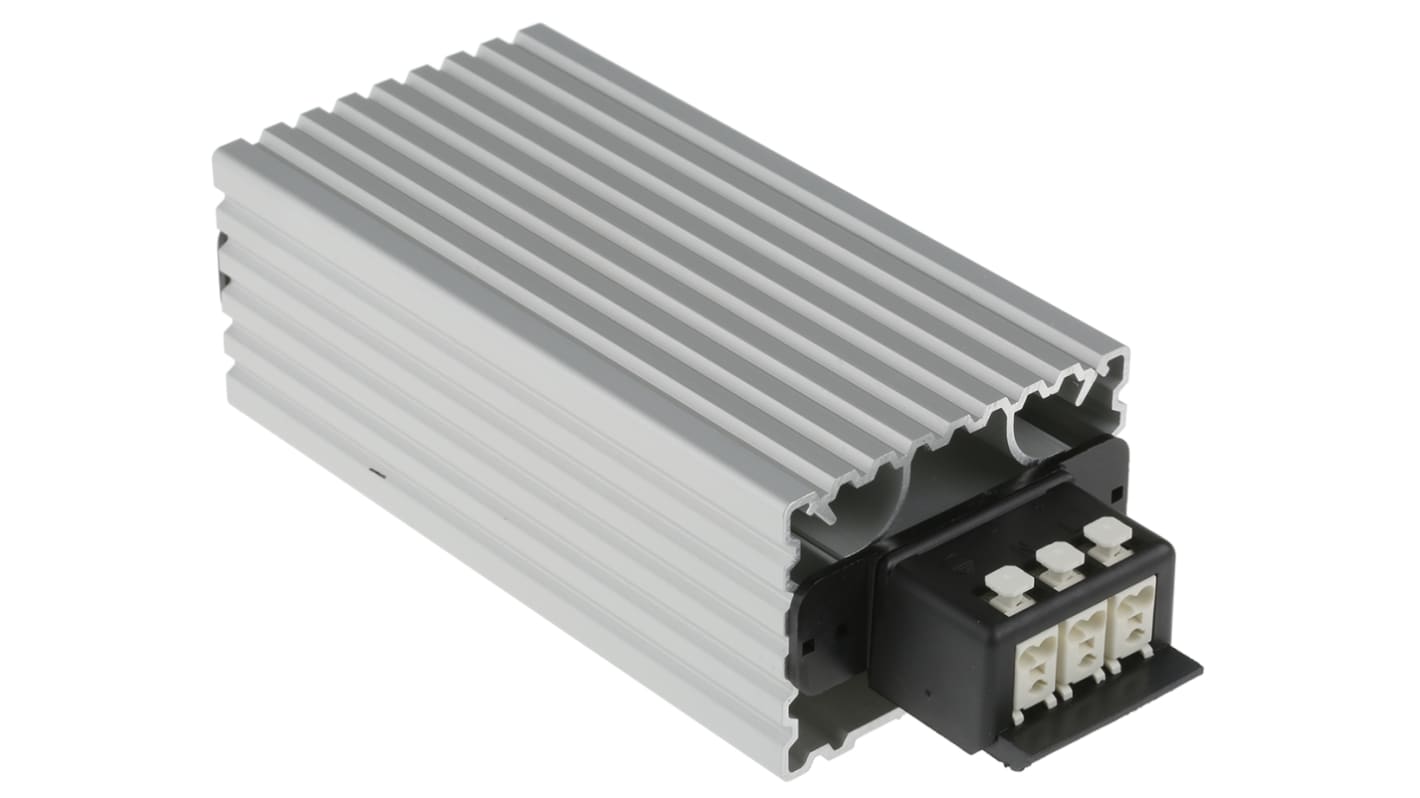

Enclosure Heater, 100W, 110 → 250 V ac, 140 x 70 x 50mm

  • RS Stock No. 103-421
  • Mfr. Part No. FLH100 17010005007
  • Manufacturer Pfannenberg
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Radiant Heaters - Pfannenberg FLH Series

Suitable for both 50Hz or 60Hz operation
Duty cycle 100%
Heating element is PTC (positive temperature coefficient), temperature regulating
Can be mounted in any position (vertical preferred)
Made from extruded aluminium section, clear anodised
Plug-in terminal connection
Cable connection capacity: solid 2 x 0.5 - 2.5mm2; fine stranded (tinned, with bootlace ferrule or crimp pin) 2 x 0.5 - 1.5mm2
DIN-rail mounting (EN 50022 35mm)
Operating temperature -20°C to +70°C
Storage temperature -40°C to +70°C
Environmental rating IP20

Note

Accessories available separately include thermostats FLZ510, FLZ520, FLZ530, hygrostat FLZ600

Approvals

UL

DIN Rail Mount Enclosure Heaters

Heaters specifically intended for anti-condensation and frost protection in control and equipment cabinets. All types are supplied with DIN rail mounting hardware.

Specifications
Attribute Value
Output Power 100W
Air Flow 50 m³/h, 61 m³/h
Input Power Rating 100W
Supply Voltage 110 → 250 V ac
Surface Temperature 130°C
Depth 50mm
Height 140mm
Width 70mm
76 In Global stock for delivery within 4 - 8 working days
Price Each
PHP 3,458.04
(exc. VAT)
PHP 3,873.00
(inc. VAT)
units
Per Unit
1 - 9
PHP3,458.04
10 - 24
PHP3,399.09
25 - 49
PHP3,309.40
50 - 99
PHP3,186.68
100 +
PHP3,026.68
