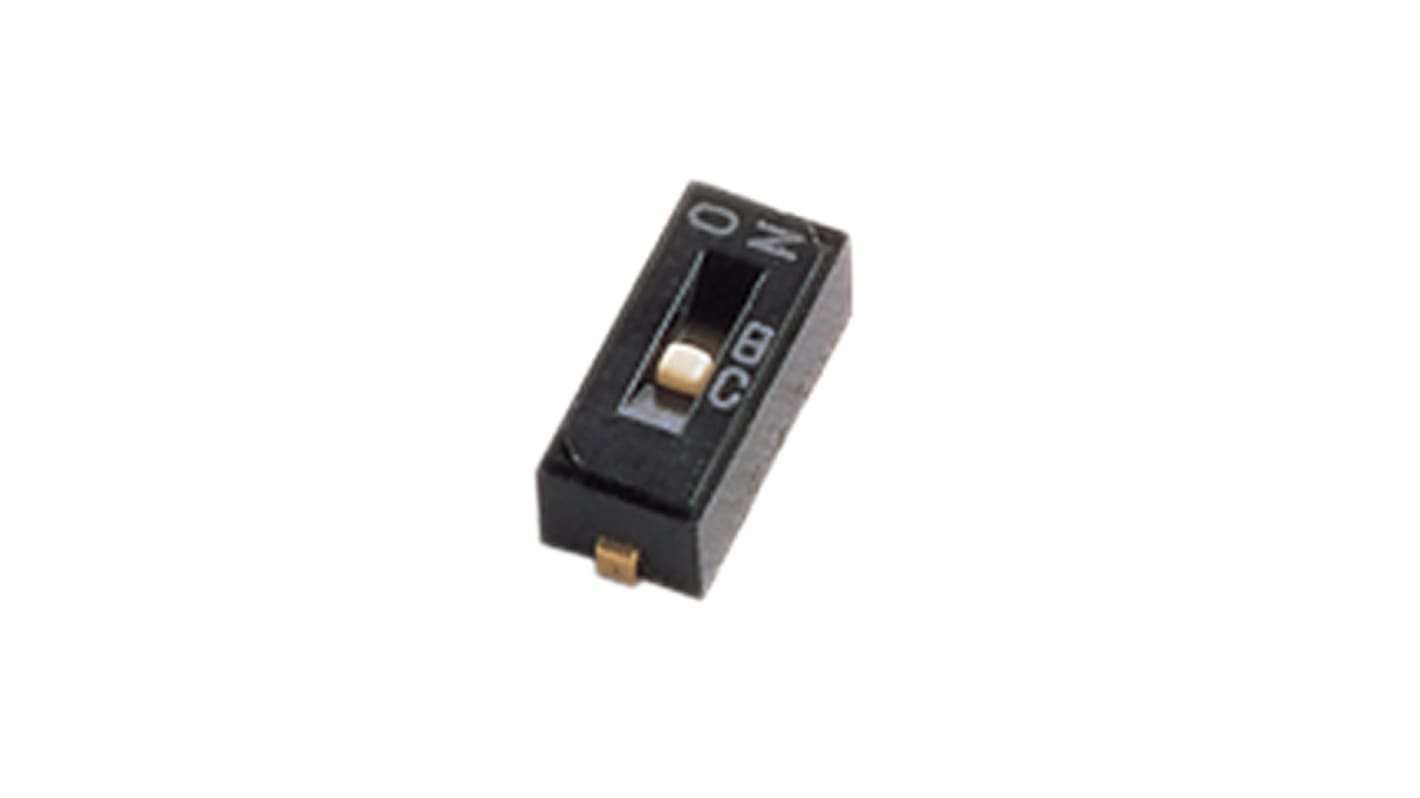

1 Way Surface Mount DIP Switch

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

CHS Series

SMD mounting height 2.5mm low profile design
Complies with EIAJ SOP standard outline dimensions
Seal tape type
Excellent contact stability with twin Au plated contacts

Dual-In-Line Switches

Sub-miniature switches in a choice of configurations and actions. Note that these switches are not suitable for immersion cleaning unless stated otherwise.

Specifications
Attribute Value
Contact Current Rating 25 mA@ 24 V dc, 100 mA@ 6 V dc
Contact Material Copper Alloy
Number of Positions 1
Mounting Type Surface Mount
Actuator Type Slide
Mechanical Life 2000Cycles
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Operating Temperature Range -40 → +85°C
Dielectric Strength 500V ac
Voltage Rating 6 V dc, 24 V dc
140 Within 6 working day(s) (Global stock)
380 Within 4 working day(s) (Global stock)
Price Each (In a Bag of 10)
PHP 78.519
(exc. VAT)
PHP 87.941
(inc. VAT)
units
Per Unit
Per Bag*
10 - 40
PHP78.519
PHP785.19
50 - 190
PHP76.87
PHP768.70
200 - 490
PHP74.18
PHP741.80
500 - 1990
PHP71.584
PHP715.84
2000 +
PHP69.077
PHP690.77
*price indicative
