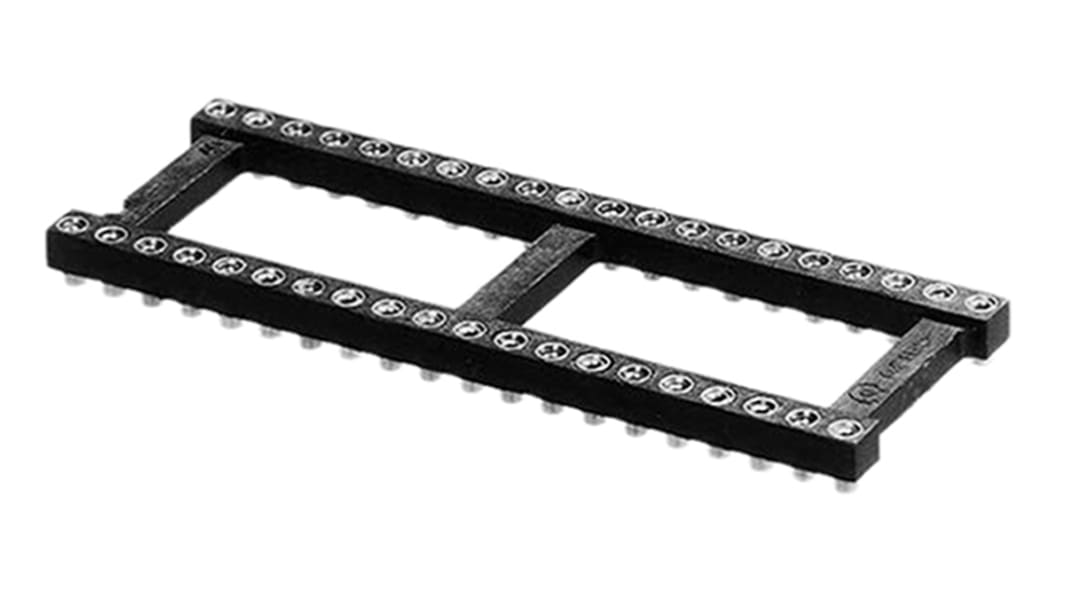

Aries Electronics 2.54mm Pitch Vertical 28 Way, SMT Open Frame IC Dip Socket, 3A

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Series 518 Surface Mount Open Frame Collet Sockets

Open frame allows for more efficient utilization of board space and better cooling. Compatible with automatic insertion equipment. Side-to-side and end-to-end stackable.

Body material is black UL 94V-0 Glass-Filled 4/6 Nylon
Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTMB16-000
4-fingered collet contact is Beryllium Copper Alloy per UNS C17200 ASTM-B194-01.
Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin;
Normal Force=140 grams/pin; based on a .018 [.46] diameter test lead.
Accepts leads .015-.025 mm diameter, 2.54-3.18 mm long.
Suggested PCB pad size=1.60 mm diameter

Specifications
Attribute Value
Number of Contacts 28
Mounting Type Surface Mount
Pitch 2.54mm
Row Width 15.24mm
Frame Type Open Frame
Termination Method Solder
Contact Plating Gold over Nickel
Current Rating 3A
Orientation Vertical
Length 35.56mm
Width 3.71mm
Depth 10.16mm
Dimensions 35.56 x 3.71 x 10.16mm
Minimum Operating Temperature -55°C
Contact Material Beryllium Copper
Housing Material Nylon
Maximum Operating Temperature +105°C
Temporarily out of stock - back order for despatch 02/10/2020, delivery within 6 working days from desptach date
Price Each
PHP 237.30
(exc. VAT)
PHP 265.78
(inc. VAT)
units
Per Unit
1 - 24
PHP237.30
25 - 74
PHP225.37
75 - 199
PHP213.02
200 - 399
PHP205.35
400 +
PHP200.67
