ITT Cannon DL 156 Way D-sub Connector Socket

RS Stock No.:: 406-644
Mfr. Part No.:: 086-0030-000
Manufacturer:: ITT Cannon

ITT Cannon DL 156 Way D-sub Connector Socket

36 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days

95 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days

Added

Price Each

Was PHP1,247.01

You pay

PHP1,184.66

(exc. VAT)

PHP1,326.82

(inc. VAT)

Units	Per Unit
1 - 19	PHP1,184.66
20 - 39	PHP1,149.13
40 +	PHP1,114.66

RS Stock No.:: 406-644
Mfr. Part No.:: 086-0030-000
Manufacturer:: ITT Cannon

Technical data sheets

ITT Cannon DL Series ZIF connectors Catalog

Legislation and Compliance

Product Details

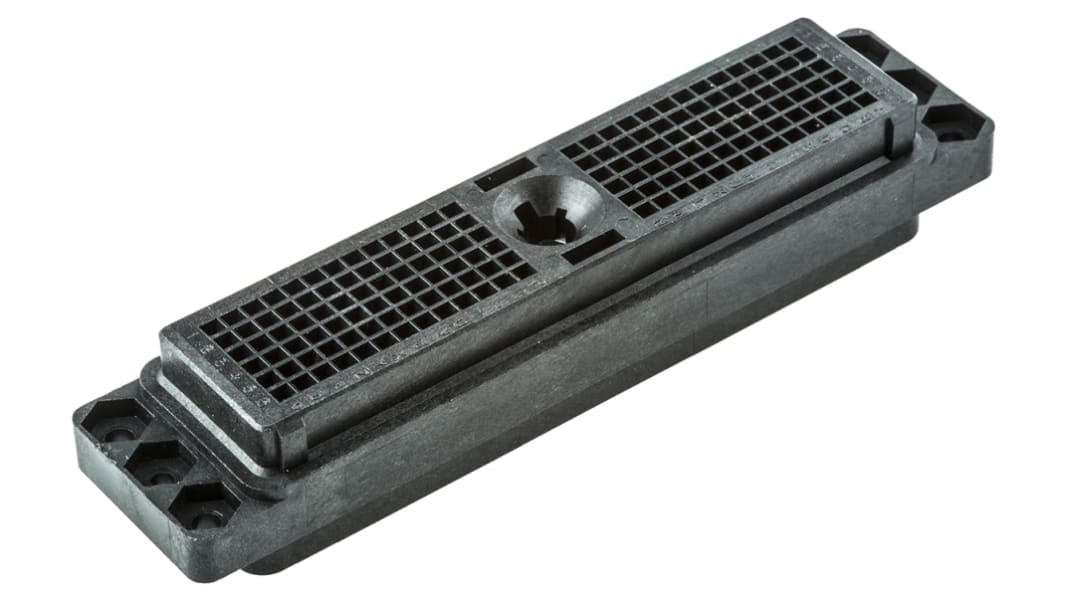

ITT Cannon Receptacle

The ITT Cannon DL series female 156 contacts receptacle will mate and lock together using the appropriate actuating handle fitted to the camshaft in the plug body. This makes it ideal for quick and durable mating in multi-wire power and signal applications where high performance is extremely important. This contact is made of beryllium copper with gold plating.

Features and Benefits

Back shell/strain relief and polarisation options
Pitch is 2.54mm
Current rating is 5A
Cam actuated zero insertion force coupling
Operating temperature ranges between -55°C and 105°C
Termination type is crimp

Applications

Broadcast and avionics industry
Computers
Instrumentation equipment in medical field

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Specifications

Attribute	Value
Number of Contacts	156
Gender	Female
Body Orientation	Straight
Termination Method	Crimp
Current Rating	5.0A
Housing Material	Thermoplastic
Voltage Rating	1.2 kV ac
Length	108mm
Width	24.9mm
Depth	20.32mm
Dimensions	108 x 24.9 x 20.32mm
Contact Plating	Gold
Series	DL
Contact Material	Beryllium Copper
Minimum Operating Temperature	-55°C
Maximum Operating Temperature	+105°C
