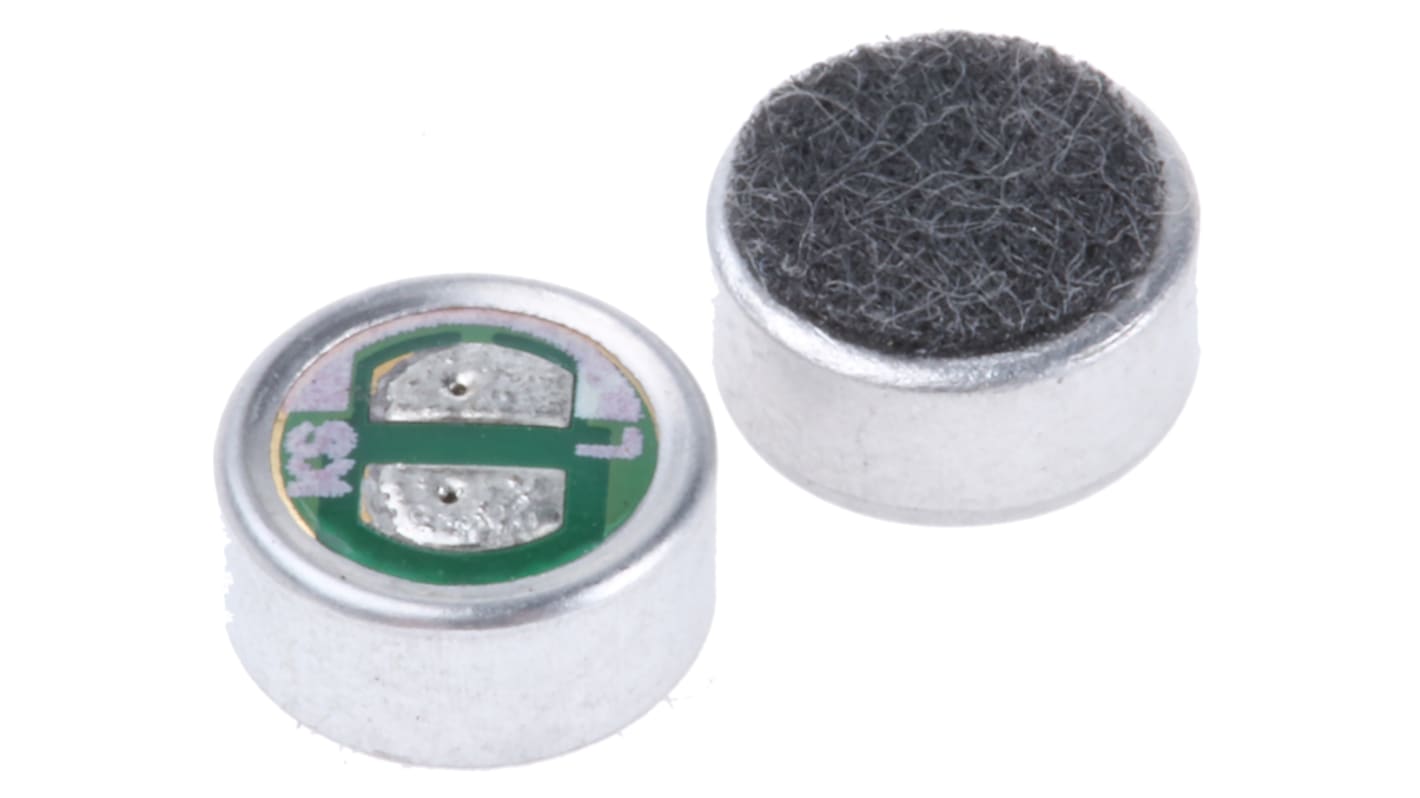

RS PRO Omni-Directional, Surface Mount 6mm Microphone Condenser -42dB
- RS Stock No.:
- 771-7020
- Manufacturer:
- RS PRO
20 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price Each (In a Bag of 5)
PHP98.294
(exc. VAT)
PHP110.089
(inc. VAT)
| Units | Per Unit | Per Bag* |
| 5 - 45 | PHP98.294 | PHP491.47 |
| 50 - 245 | PHP95.348 | PHP476.74 |
| 250 - 495 | PHP92.488 | PHP462.44 |
| 500 - 995 | PHP90.436 | PHP452.18 |
| 1000 + | PHP74.428 | PHP372.14 |
| *price indicative | ||
- RS Stock No.:
- 771-7020
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Electret Microphone Inserts
Range of SMT and PCB mounting miniature electret condenser microphone inserts
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Sensitivity | -42dB |
| Directivity | Omni-Directional |
| Standard Operating Voltage | 2V dc |
| Mounting Type | Surface Mount |
| Output Impedance | 2.2kΩ |
| Signal to Noise Ratio | 60dB |
| Maximum Supply Current | 0.5mA |
| Dimensions | 6 x 2.7mm |
| Diameter | 6mm |
| Height | 2.7mm |
| Maximum Frequency | 20kHz |
| Maximum Operating Temperature | +70°C |
| Minimum Frequency | 20Hz |
| Minimum Operating Temperature | -20°C |
