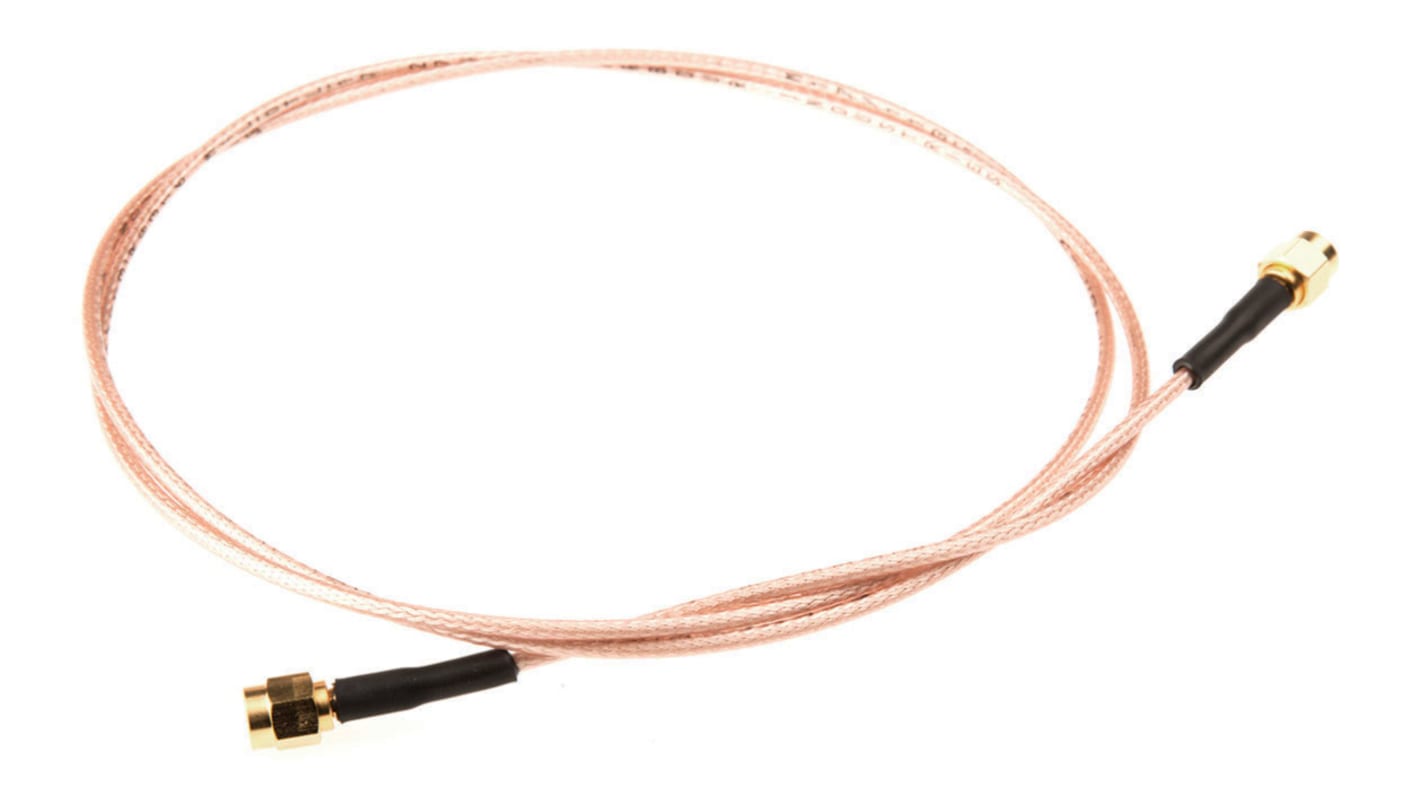

TE Connectivity 50 Ω, Male SMA to Male SMA Coaxial Cable Assembly, 1m length, RG316 cable type

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TE Connectivity 50 Ohm SMA RF Coaxial Cable Assembly - SMA Straight Plug to SMA Straight Plug

50 Ohm SMA RF coaxial SMA straight plug to SMA straight plug cable assemblies with a gold centre contact. These 50 Ohm SMA RF coaxial SMA straight plug to SMA straight plug cable assemblies are available in various cable lengths and have the following body platings and RF coaxial cable types:
Part numbers 1337808-x have a stainless steel plated body and gold plated centre contact and are for use with RG-316 RF coaxial cables
Part numbers 1337809-x have a gold plated body and are for use with RG-174 RF coaxial cables

TE Connectivity

Connectors with PTFE insulators and silicone rubber gaskets.

Cable assemblies in various length and connector termination

Specifications
Attribute Value
Connector A Male SMA
Connector B Male SMA
Length 1m
Characteristic Impedance 50 Ω
Coaxial Type RG316
Cable Shape Coaxial
76 In Global stock for delivery within 4 - 8 working days
Price Each
PHP 1,663.89
(exc. VAT)
PHP 1,863.56
(inc. VAT)
units
Per Unit
1 - 14
PHP1,663.89
15 - 49
PHP1,497.43
50 - 99
PHP1,347.59
100 - 249
PHP1,212.58
250 +
PHP1,091.71
