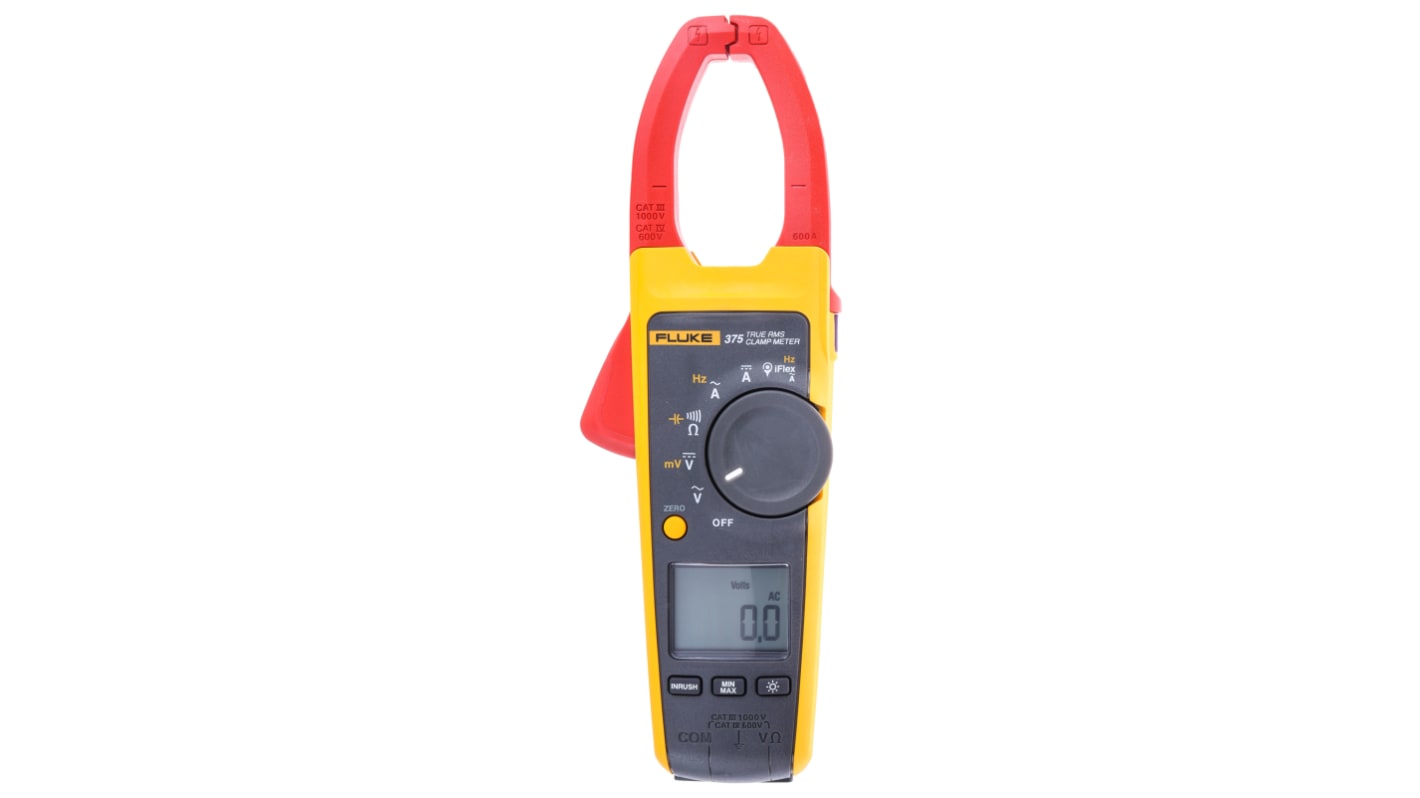

Fluke 375 Clamp Meter, Max Current 600A ac, 600A dc CAT III 1000 V, CAT IV 600 V

  • RS Stock No. 914-5433
  • Mfr. Part No. 3790586
  • Manufacturer Fluke
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

Fluke 374 and 375

Fluke 374 and 375 Clamp Meters with high performances.

Large backlit display
600 A ac and dc current measurement with fixed jaws
2500 A ac current measurement with optional iFlex flexible current probe
600 V ac (true rms) and dc voltage measurement
Capacitance, resistance and continuity measurement
Display HOLD, Min, max, average and inrush recording
CAT IV 600V, CAT III 1000 V safety rating

375 additional feature

500mV dc measurement range to interface with other accessories
Frequency measurement
Low pass filter for stable readings in noisy environments

Supplied with

Soft carry case, 2 x AA alkaline batteries and instructions

Specifications
Attribute Value
Absolute Maximum AC Current Measurement 600A ac
Absolute Maximum DC Current Measurement 600A dc
Absolute Maximum AC Voltage Measurement 600V ac
Absolute Maximum DC Voltage Measurement 600V dc
Absolute Maximum Resistance Measurement 6kΩ
Model Number 375
AC Current Measurement Resolution 0.1A
DC Current Measurement Resolution 0.1A
Best DC Current Accuracy 2 %
Clamp Meter Type AC/DC Clamp Meter
Best AC Current Accuracy 2 %
Best AC Voltage Accuracy 1.5 %
Best DC Voltage Accuracy 1 %
Best Resistance Measurement Accuracy 1 %
Height 246mm
Safety Category CAT III 1000 V, CAT IV 600 V
Weight 388g
Safety Category Voltage 600 V, 1000 V
DC Voltage Measurement Resolution 0.1V
Length 83mm
Display Type Backlight
Battery Type AA
Power Source Battery
True RMS Yes
Width 43mm
Dimensions 83 x 43 x 246mm
Resistance Measurement Resolution 100mΩ
Jaw Capacity Busbars 34mm
Maximum Operating Temperature +50°C
Safety Category Level CAT III, CAT IV
AC Voltage Measurement Resolution 0.1V
Minimum Operating Temperature +10°C
Functions Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance
11 In Global stock for delivery within 4 - 8 working days
Price Each
PHP 28,336.00
(exc. VAT)
PHP 31,736.32
(inc. VAT)
units
Per Unit
1 +
PHP28,336.00
