Amprobe ACD-14 PLUS Clamp Meter, Max Current 600A ac CAT III 600V
- RS Stock No.:
- 794-3070
- Mfr. Part No.:
- ACD-14 PLUS
- Manufacturer:
- Amprobe
Stocked by manufacturer – available for delivery 07/06/2024
Added
Price Each
PHP14,208.00
(exc. VAT)
PHP15,912.96
(inc. VAT)
| Units | Per Unit |
| 1 + | PHP14,208.00 |
- RS Stock No.:
- 794-3070
- Mfr. Part No.:
- ACD-14 PLUS
- Manufacturer:
- Amprobe
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- TW
Product Details

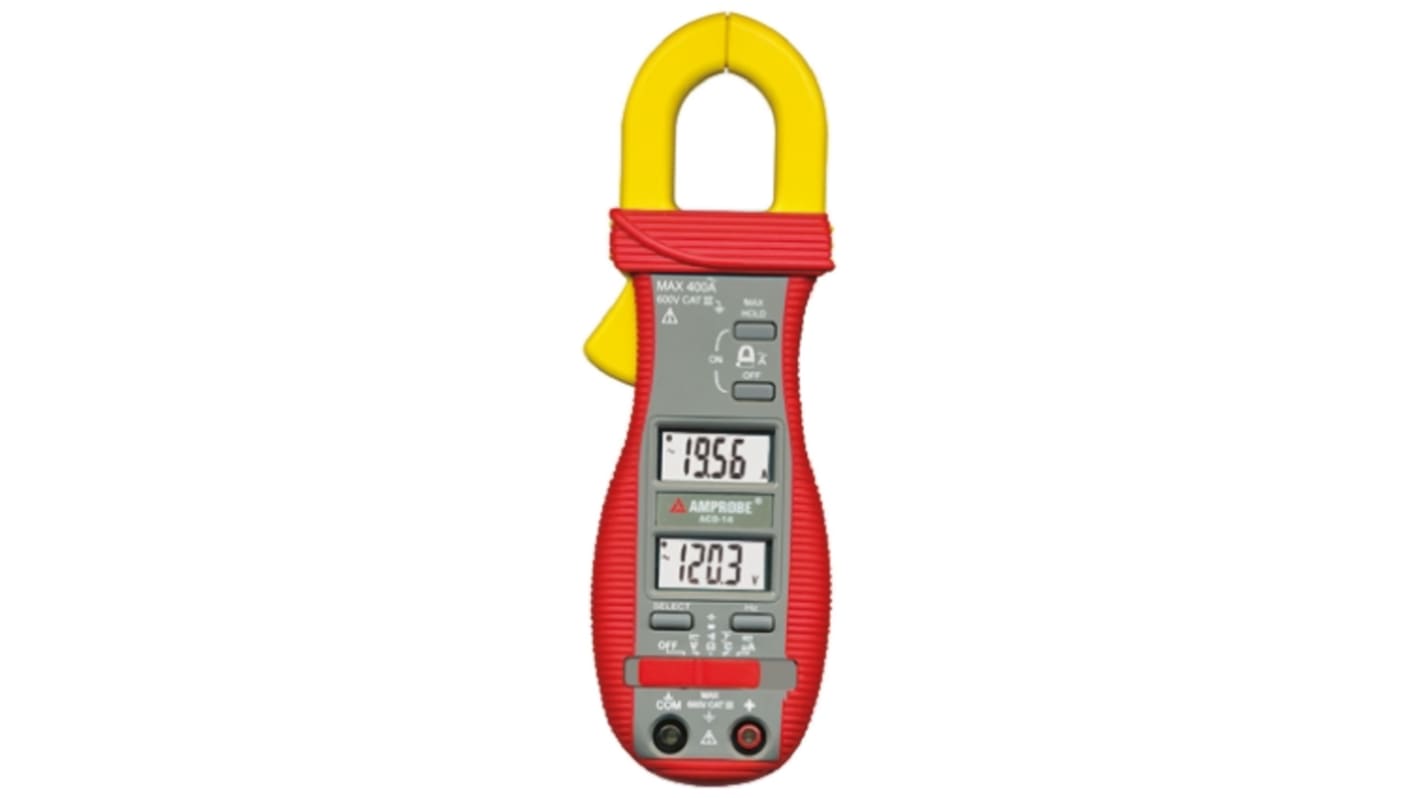

ACD-14 Plus 600A Dual Display Clamp Multimeter
The ACD-14 PLUS clamp meter is the perfect choice for both HVAC and electrical applications due to its versatile set of features which includes microamps, temperature with thermocouple, capacitance and frequency. Its dual displays allows viewing amperage and voltage simultaneously.
The ACD-14 Plus 600A Dual Display Clamp Multimeter offers thinner jaws over standard clamp meters, allowing access to tight measurement areas and still accommodating conductors up to 28 mm
Dual Displays
AC Current to 600A
New thin jaws, 5 mm thinner than others to access tight measurement spaces
Micro Amps measurement for testing Flame Sensors
Capacitance to 3000 μF
Temperature with Type-K Thermocouple probe
AC and DC Voltage to 600V
Resistance to 40MΩ
Continuity Buzzer
Frequency measurement
Diode test
Hold and Maximum reading functions
In rush current
Accommodates conductors up to 28 mm in diameter
Auto ranging
Auto power off and low battery indication
Rubber over-molded case
Dual Displays
AC Current to 600A
New thin jaws, 5 mm thinner than others to access tight measurement spaces
Micro Amps measurement for testing Flame Sensors
Capacitance to 3000 μF
Temperature with Type-K Thermocouple probe
AC and DC Voltage to 600V
Resistance to 40MΩ
Continuity Buzzer
Frequency measurement
Diode test
Hold and Maximum reading functions
In rush current
Accommodates conductors up to 28 mm in diameter
Auto ranging
Auto power off and low battery indication
Rubber over-molded case
Supplied with
Test leads, battery (installed), Type-K thermocouple with banana plug, soft carrying pouch, users manual.
Specifications
Attribute | Value |
|---|---|
| Absolute Maximum AC Current Measurement | 600A ac |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 40MΩ |
| Model Number | ACD-14 PLUS |
| AC Current Measurement Resolution | 10mA |
| Clamp Meter Type | AC Current Clamp Meter |
| Best AC Current Accuracy | ±(1.5% rdg + 8dgts) |
| Best AC Voltage Accuracy | ±(1.5% rdg + 5dgts) |
| Best DC Voltage Accuracy | ±(0.3% rdg + 4dgts) |
| Functions Measured | AC Current, AC Voltage, Capacitance, DC Voltage, Resistance, Temperature |
| Jaw Capacity Busbars | 26mm |
| Safety Category Level | CAT III |
| Battery Type | Alkaline |
| Safety Category | CAT III 600V |
| Best Resistance Measurement Accuracy | ±2% + 4 Digits |
| Weight | 204g |
| Absolute Maximum Temperature Measurement | +537°C |
| Safety Category Voltage | 600V |
| Height | 32mm |
| Minimum Operating Temperature | 0°C |
| Display Type | LCD |
| Best Temperature Measurement Accuracy | ±3% + 3 °C |
| DC Voltage Measurement Resolution | 1mV |
| Battery Life | 95 h |
| Maximum Conductor Size | 28mm |
| AC Voltage Measurement Resolution | 1mV |
| Dimensions | 190 x 63 x 32mm |
| Maximum Operating Temperature | +40°C |
| Length | 190mm |
| Width | 63mm |
| Power Source | Battery |
