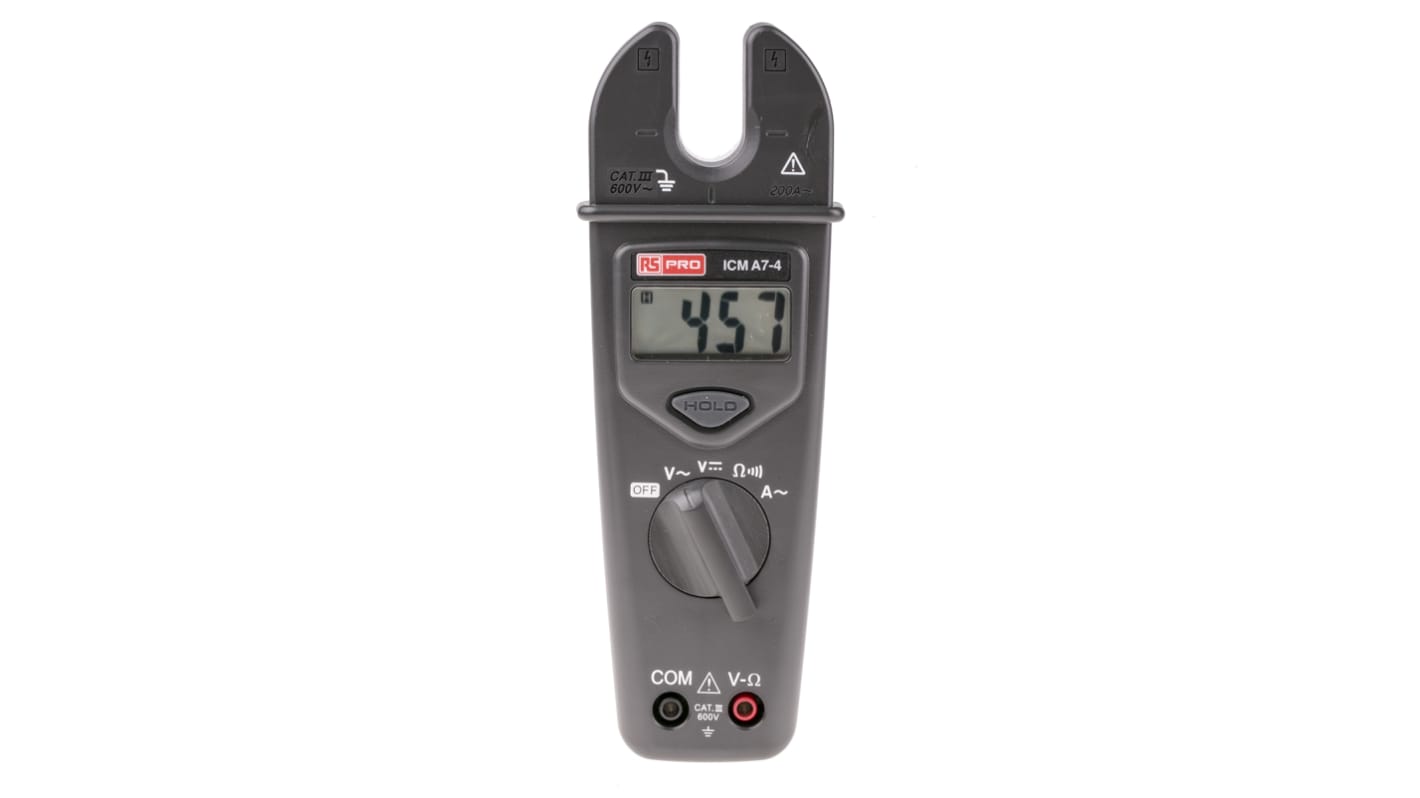

RS PRO ICMA7-4 Clamp Meter, Max Current 200A ac CAT III 600 V
- RS Stock No.:
- 123-3233
- Manufacturer:
- RS PRO
75 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price Each
PHP11,791.55
(exc. VAT)
PHP13,206.54
(inc. VAT)
| Units | Per Unit |
| 1 + | PHP11,791.55 |
- RS Stock No.:
- 123-3233
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS PRO ICMA7-4 AC Open Jaw Clamp Meter, Max Current 200 A AC, CAT III 600 V
This RS PRO open-jaw clamp meter is a diagnostic tool you can use to measure current, voltage and resistance. The meter features an open jaw technology that allows you to measure a cable or other conductors at any point in your electrical system without cutting into the wire and shutting off the current.
The meter is especially useful when you need to identify problems with your existing electrical system or when testing and troubleshooting new installations. It also allows you to perform periodic maintenance tasks and troubleshoot more easily.
The device is supplied with test leads, a 9 V PP3 battery and an instruction manual, meaning you can start using it right away. It's also compliant with the CAT III 600 V/CAT II 1000 V standards so you can be sure of safe use.
The meter is especially useful when you need to identify problems with your existing electrical system or when testing and troubleshooting new installations. It also allows you to perform periodic maintenance tasks and troubleshoot more easily.
The device is supplied with test leads, a 9 V PP3 battery and an instruction manual, meaning you can start using it right away. It's also compliant with the CAT III 600 V/CAT II 1000 V standards so you can be sure of safe use.
Features and Benefits
• Battery life of 250 h
• Battery type of 9V, IEC 6F22 and NEDA 1604
• AC open jaw clamp meter type
• Dimensions of 84 x 31 x 175 mm
• Jaw capacity (busbars) of 16 mm
• Maximum conductor size of 16 (diameter) mm
• Weight of 280 g
• Resistance functions measured of AC current, AC voltage, continuity, DC voltage and diode test
• Operating temperature range of -20°C to +50°C
• Safety category voltage of CAT III 600 V
• Battery type of 9V, IEC 6F22 and NEDA 1604
• AC open jaw clamp meter type
• Dimensions of 84 x 31 x 175 mm
• Jaw capacity (busbars) of 16 mm
• Maximum conductor size of 16 (diameter) mm
• Weight of 280 g
• Resistance functions measured of AC current, AC voltage, continuity, DC voltage and diode test
• Operating temperature range of -20°C to +50°C
• Safety category voltage of CAT III 600 V
Specifications
Attribute | Value |
|---|---|
| Absolute Maximum AC Current Measurement | 200A ac |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 2kΩ |
| Model Number | ICMA7-4 |
| AC Current Measurement Resolution | 100mA |
| Clamp Meter Type | AC Open Jaw Clamp Meter |
| Best AC Current Accuracy | ±(3% rdg + 3dgts) |
| Best AC Voltage Accuracy | ±(1.5% rdg + 3dgts) |
| Best DC Voltage Accuracy | ±(1% rdg + 2dgts) |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Voltage, Diode Test, Resistance |
| Jaw Capacity Busbars | 16mm |
| Battery Life | 250 h |
| Battery Type | 9V, IEC 6F22, NEDA 1604 |
| AC Voltage Measurement Resolution | 1V |
| Safety Category | CAT III 600 V |
| Best Resistance Measurement Accuracy | ±1% + 2 Digits |
| Maximum Operating Temperature | +50°C |
| Maximum Conductor Size | 16 (Dia.)mm |
| Safety Category Level | CAT III |
| Weight | 280g |
| Safety Category Voltage | 600V |
| Power Source | Battery |
| Dimensions | 84 x 31 x 175mm |
| Length | 84mm |
| Minimum Operating Temperature | -20°C |
| Height | 175mm |
| Width | 31mm |
| DC Voltage Measurement Resolution | 1V |
