HellermannTyton Cable Tie, 200mm x 3.4 mm, Black Polyamide 6.6 (PA66), Pk-100
- RS Stock No.:
- 542-4271
- Mfr. Part No.:
- 118-04900 T30LOS-PA66HS-BK
- Manufacturer:
- HellermannTyton
3 In PH stock for Delivery NCR Plus within 2 working days, rest of PH within 7 working days
6 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days
840 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price 1 Bag of 100
PHP1,753.30
(exc. VAT)
PHP1,963.70
(inc. VAT)
| Bag(s) | Per Bag | Per Unit* |
| 1 - 14 | PHP1,753.30 | PHP17.533 |
| 15 - 74 | PHP1,700.70 | PHP17.007 |
| 75 + | PHP1,649.68 | PHP16.497 |
| *price indicative | ||
- RS Stock No.:
- 542-4271
- Mfr. Part No.:
- 118-04900 T30LOS-PA66HS-BK
- Manufacturer:
- HellermannTyton
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

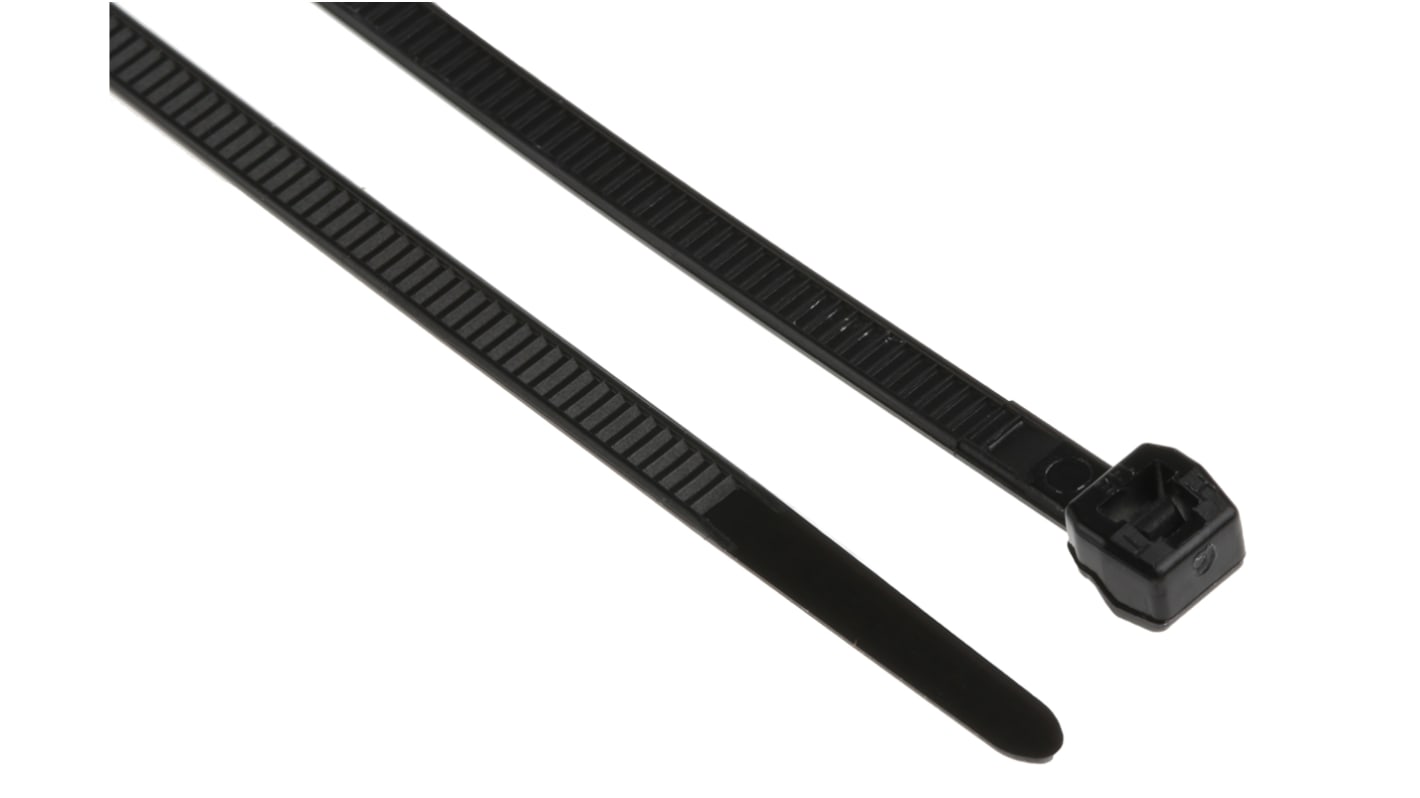

HellermannTyton Cable Tie
The HellermannTyton T30LOS series black cable tie is made of nylon 66 (PA66HS). It has a bundle diameter of 50mm, length of 200mm and width of 3.4mm. This cable tie offers the ideal combination of high specification materials and superior design to meet the needs for bundling and securing thin-wall and soft insulated cables. This cable tie is designed to meet specific applications where thin-walled or soft insulation wires or cables are used. Each pack contains 100 units.
Features and Benefits
Bundles and holds secure cable bundles as small as 1.6mmØ
Designed specifically to overcome problems where the compression of cores could lead to cross-talk
Easily application either manually with a processing tool
Low insertion force and high tensile strength
Network rail approved
Operating temperature ranging between -40°C and 105°C
Outside serrated with smooth surface to the bundle
Presents a smooth surface to the cable, thus preventing insulation damage by vibration or indentation
Small, rounded head design allows use in areas having restricted space or access
Takes up less space due to curved head
Tensile strength is 135N
Designed specifically to overcome problems where the compression of cores could lead to cross-talk
Easily application either manually with a processing tool
Low insertion force and high tensile strength
Network rail approved
Operating temperature ranging between -40°C and 105°C
Outside serrated with smooth surface to the bundle
Presents a smooth surface to the cable, thus preventing insulation damage by vibration or indentation
Small, rounded head design allows use in areas having restricted space or access
Takes up less space due to curved head
Tensile strength is 135N
Applications
Aerospace
Automotive cable harnesses
Mass transit
Medical apparatus
Automotive cable harnesses
Mass transit
Medical apparatus
Certifications
EN 45545-2
HF certified
NF-F 61-349
UL 94 V2 approved
HF certified
NF-F 61-349
UL 94 V2 approved
Specifications
Attribute | Value |
|---|---|
| Length | 200mm |
| Width | 3.4 mm |
| Colour | Black |
| Material | Polyamide 6.6 (PA66) |
| Type | Non-Releasable |
| Quantity | 100 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| Fire Behaviour | Halogen Free |
| Tensile Strength | 135N |
| Series | T30LOS |
| Maximum Bundle Diameter | 50mm |
