- RS Stock No.:
- 423-7559
- Mfr. Part No.:
- 2044000041
- Manufacturer:
- Mascot
In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price Each
Was PHP26,817.99
You pay
PHP20,874.99
(exc. VAT)
PHP23,379.99
(inc. VAT)
Units | Per Unit |
1 + | PHP20,874.99 |
- RS Stock No.:
- 423-7559
- Mfr. Part No.:
- 2044000041
- Manufacturer:
- Mascot
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- NO
Product Details

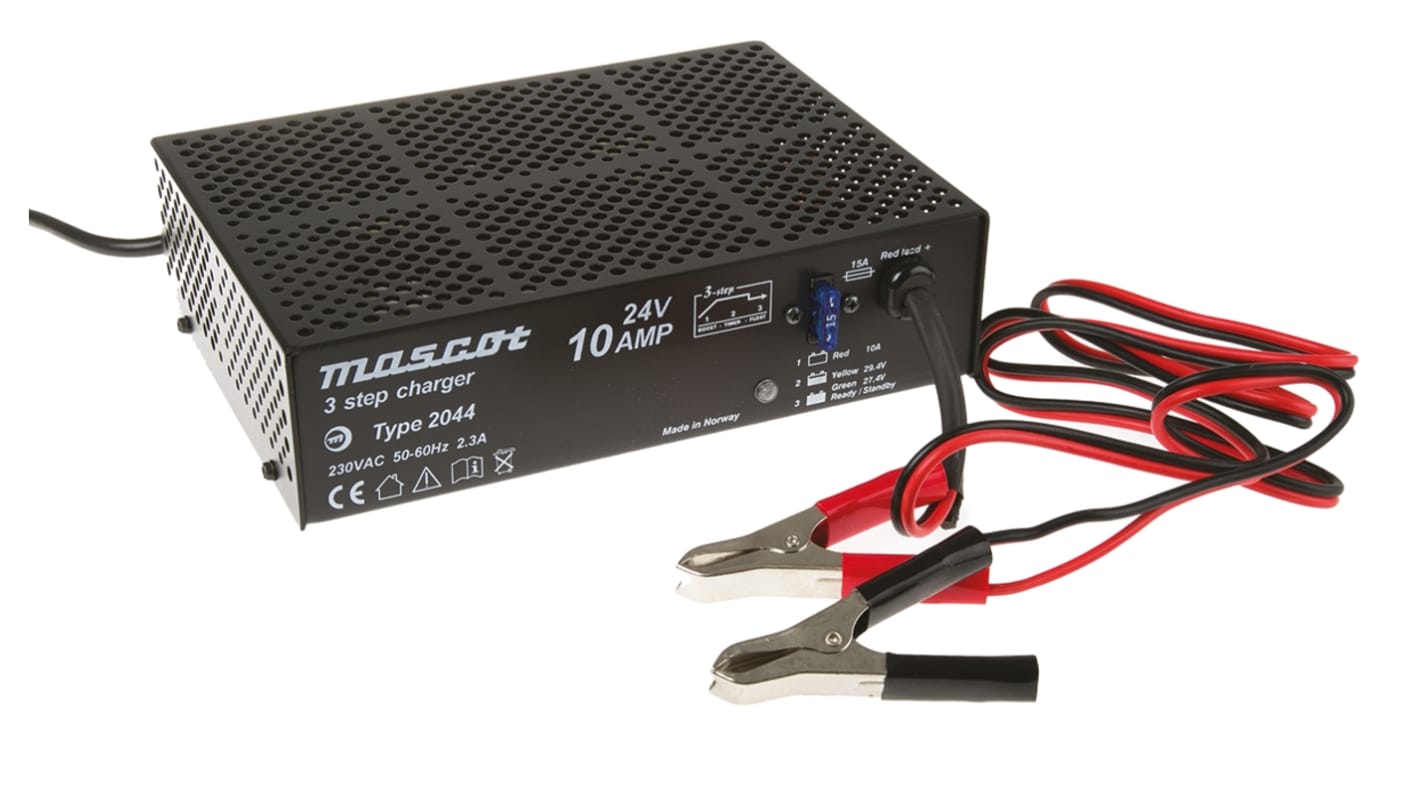

Mascot Battery Charger
The Mascot 2240 series lead-acid 24V battery charger is switch mode type and has a 3-step charger with timer. It comes with a 3-colour LED charge status indicator. It requires input supply voltage between 198VAC and 264VAC. The output voltage rating is 24V and current rating is 10A.
Features and Benefits
Reverse polarity protection
Short-circuit proof
Low leakage current, unit can be left connected without mains input
Temperature compensated charge voltage
Mounting bracket available separately
High efficiency > 83 %
Short-circuit proof
Low leakage current, unit can be left connected without mains input
Temperature compensated charge voltage
Mounting bracket available separately
High efficiency > 83 %
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
Specifications
Attribute | Value |
---|---|
Chemistries Charged | Lead Acid |
Output Voltage | 24V |
Charge Current | 10A |
Plug Type | UK |
Number of Batteries Charged | 1 |
Input Voltage | 198 → 264V ac |
Batteries Included | No |
Number of Charge Stages | 3 |
Weight | 1.6kg |
Dimensions | 210 x 148 x 58mm |
