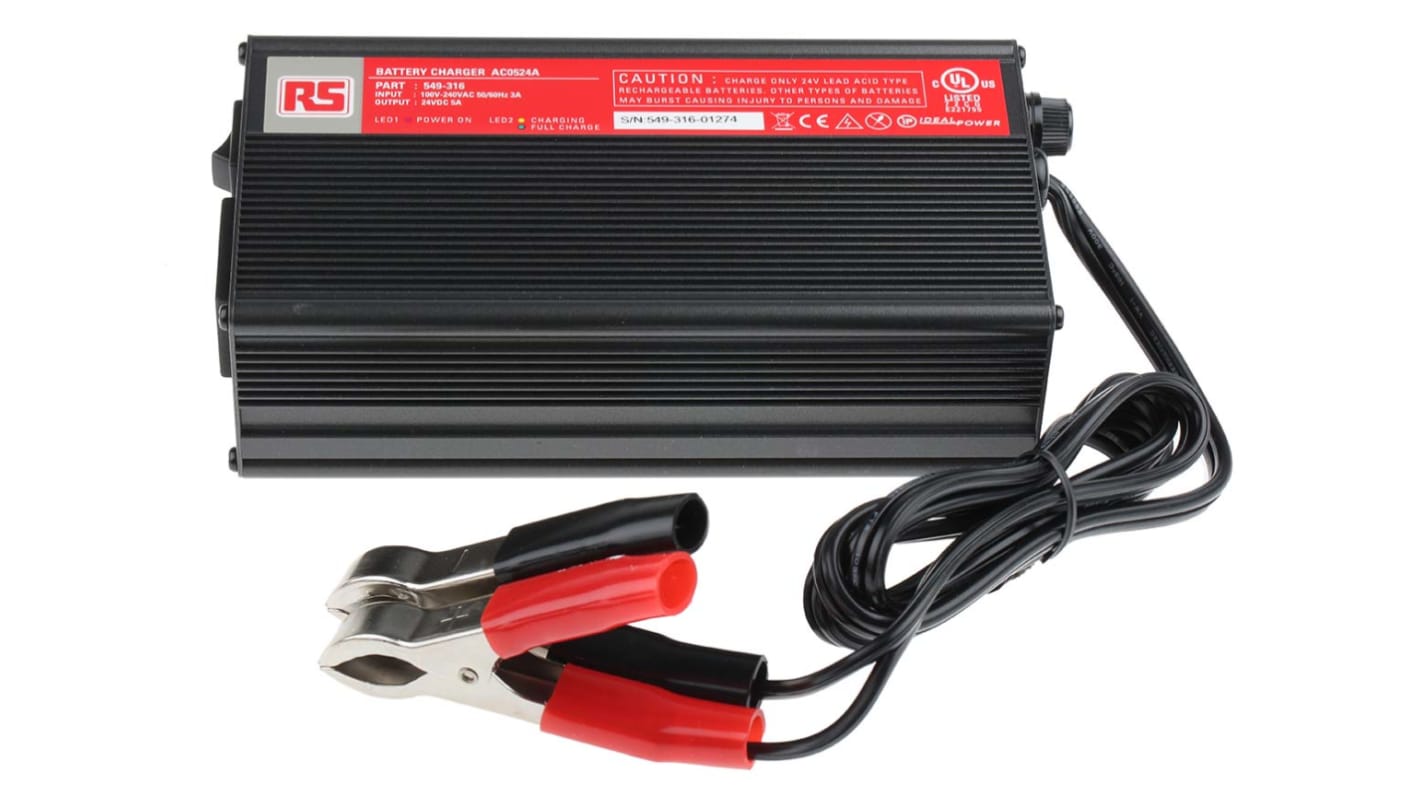

RS PRO Lead Acid 24V 5A Battery Charger with EU/UKplug

  • RS Stock No. 549-316
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

24V 3 Stage RS PRO Lead Acid Battery Chargers

The high-quality range of Automatic 3 Stage 24V Lead Acid Battery Chargers from our own RS PRO brand benefits from charging current of 2∼50A and aluminium impact resistant casing. It is also supplied with UK and EU Mains Leads & Crocodile Clip Connectors.

Features

• 3 Stage Control (Fast/Normal/Float)
• Full Charge with Automatic Shutdown
• Short Circuit Output Protected
• Most models with 115/230V input range
• Reverse Polarity Protected
• Overload Protected
• Compliant to safety standards
• LED Indicator Included
• RoHS & CE Directive Compliant
• UK / EU Plug

Benefits

When the battery is fully charged, an auto shutdown will take place. Charging works in either fast, normal or trickle rate. Due to its universal input voltage the battery charger is suitable for worldwide operation.

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

This great RS Pro Battery Charger (0.8 kg) not only provides a value for money, but has a short circuit and overload protections.
When the battery is fully charged, an auto shutdown feature will take care of it for you.
This compact battery charger has 3 options how lead acid batteries works here:
•At a fast
•Normal
•And trickle rate
For a comfortable use this product is supplied with crocodile clip connectors.
Due to its universal input voltage the battery charger is suitable for worldwide operation.
The battery charger meets RoHS and CE directive standards.

Specifications
Attribute Value
Number of Batteries Charged 1
Chemistries Charged Lead Acid
Plug Type EU/UK
Batteries Included No
Dimensions 186 x 88 x 47.5mm
Charge Current 5A
Input Voltage 115 V ac, 230 V ac
Number of Charge Stages 3
Output Voltage 24V
Weight 800g
19 In Global stock for delivery within 4 - 8 working days
Price Each
Was PHP5,037.00
PHP 4,978.47
(exc. VAT)
PHP 5,575.89
(inc. VAT)
units
Per Unit
1 +
PHP4,978.47
