SKF 61901-2Z Single Row Deep Groove Ball Bearing- Both Sides Shielded 12mm I.D, 24mm O.D
- RS Stock No.:
- 144-0862
- Mfr. Part No.:
- 61901-2Z
- Manufacturer:
- SKF
Temporarily out of stock - back order for despatch 30/04/2024, delivery within 10 working days from desptach date
Added
Price Each
PHP1,022.43
(exc. VAT)
PHP1,145.12
(inc. VAT)
| Units | Per Unit |
| 1 - 12 | PHP1,022.43 |
| 13 - 24 | PHP1,008.11 |
| 25 + | PHP987.96 |
- RS Stock No.:
- 144-0862
- Mfr. Part No.:
- 61901-2Z
- Manufacturer:
- SKF
Legislation and Compliance
Product Details

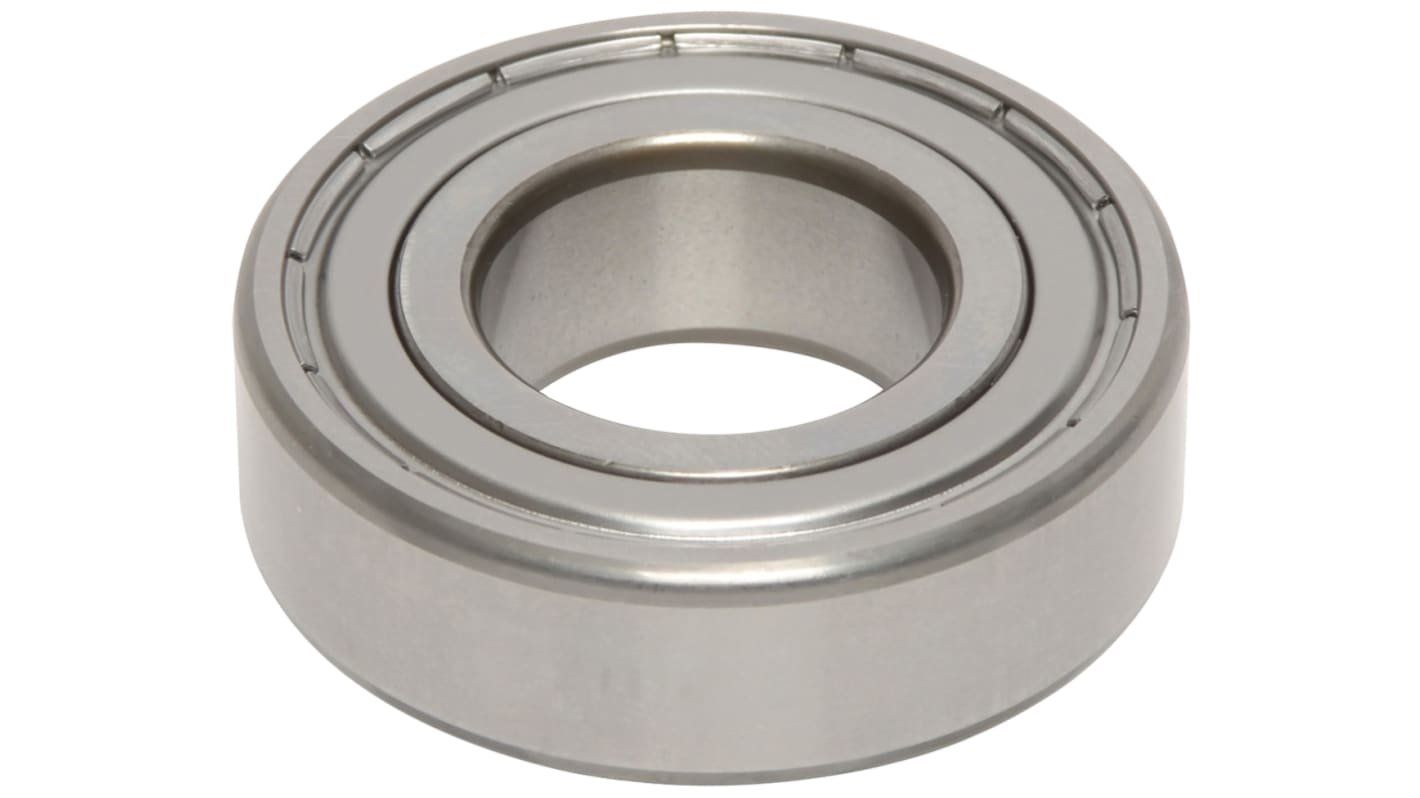

SKF Plain Deep-Groove Ball Bearing, 12mm ID, 24mm OD - 61901-2Z
Looking for a versatile ball bearing to accommodate radial and axial loads in both directions? This deep-groove ball bearing from SKF will deliver high performance along with high load capacity. It's ideal for use in dusty or dirty environments, as its ball race is protected from contamination by a double steel shield. This helps to prevent friction losses, keep maintenance to a minimum and ensure a reliably long service life.
• Steel cage separates the balls and maintains their radial spaces, for precision movement
• Parallel bore means the bearing can be mounted directly onto a shaft without needing an adaptor sleeve
• Parallel bore means the bearing can be mounted directly onto a shaft without needing an adaptor sleeve
Applications
• Automation control
• Office machinery
• Garden and household tools
• Office machinery
• Garden and household tools
What's the purpose of bearing shields?
Bearing shields serve a double purpose. First, they ensure proper function by stopping dust and dirt from getting into the workings of the bearing. Second, they prevent the grease from leaking out.
Why are deep-groove ball bearings the most popular type?
Deep-groove ball bearings are popular because they're able to carry high loads both radially and axially. This makes them a versatile choice.
Specifications
Attribute | Value |
|---|---|
| Inside Diameter | 12mm |
| Outside Diameter | 24mm |
| Race Width | 6mm |
| Ball Bearing Type | Single Row Deep Groove Ball Bearing |
| Sealing Arrangement | Both Sides Shielded |
| Bearing Clearance | CN |
| Material | Steel |
| Ball Material | Steel |
| Cage Material | Sheet Metal |
| Number of Rows | 1 |
| Static Load Rating | 1.46kN |
| Dynamic Load Rating | 2.91kN |
| Bore Type | Parallel |
| Bearing Series | 1 Extra Light Thrust |
| Model Number p | 619012Z |
| Race Type | Plain |
| Race Material | Steel |
| Partial Bearing Code | 61901 |
