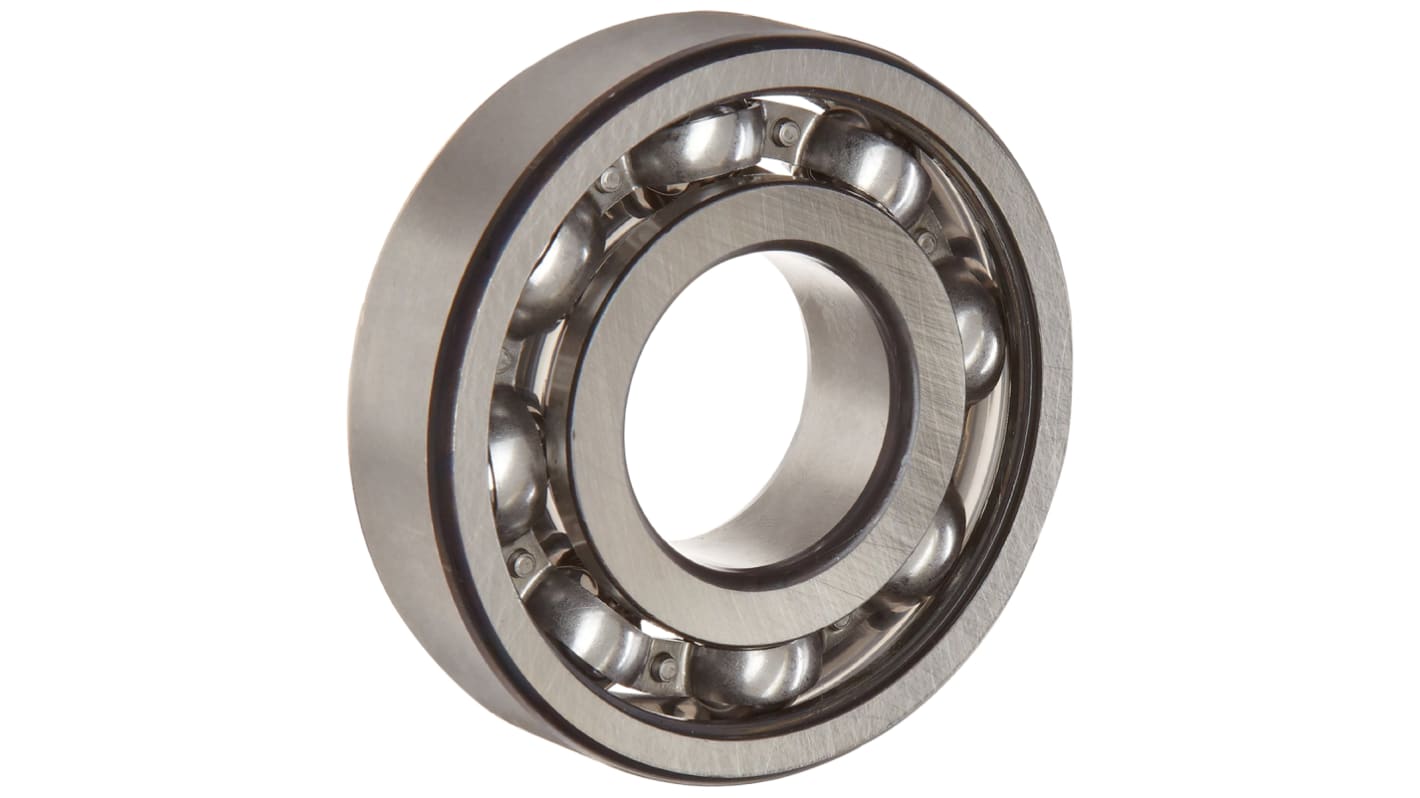

10mm Deep Groove Ball Bearing 30mm O.D

  • RS Stock No. 144-0835
  • Mfr. Part No. 6200/C3
  • Manufacturer SKF
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): BG
Product Details

Deep Groove Ball Bearings

Deep groove ball bearings are versatile. They are simple in design, non-separable, suitable for high speeds and are robust in operation, requiring little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from SKF in many designs, variants and sizes.

Product Application Information

SKF single and double row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields).
Double row deep groove ball bearings are only available as open bearings (without seals or shields).

Suffixes

2RS1 - Contact seal, NBR, on one or both sides 2Z - Shield on one or both sides
C3 - Radial internal clearance greater than normal
2RZ - Non-contact seal, NBR, on one or both sides

SKF

Specifications
Attribute Value
Inside Diameter 10mm
Outside Diameter 30mm
Ball Bearing Type Deep Groove
Race Width 9mm
End Type Open
Number of Rows 1
Static Load Rating 2.36kN
Material Steel
Ball Material Steel
Cage Material Steel
Race Material Steel
Race Type Plain
Dynamic Load Rating 5.4kN
Bore Type Parallel
17 Within 5 working day(s) (Global stock)
88 Within 5 working day(s) (Global stock)
Price Each
PHP 187.24
(exc. VAT)
PHP 209.71
(inc. VAT)
units
Per Unit
1 - 4
PHP187.24
5 - 9
PHP179.34
10 - 24
PHP176.24
25 +
PHP172.46
