- RS Stock No.:
- 506-040
- Mfr. Part No.:
- 6215
- Manufacturer:
- SKF
- RS Stock No.:
- 506-040
- Mfr. Part No.:
- 6215
- Manufacturer:
- SKF
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product Details

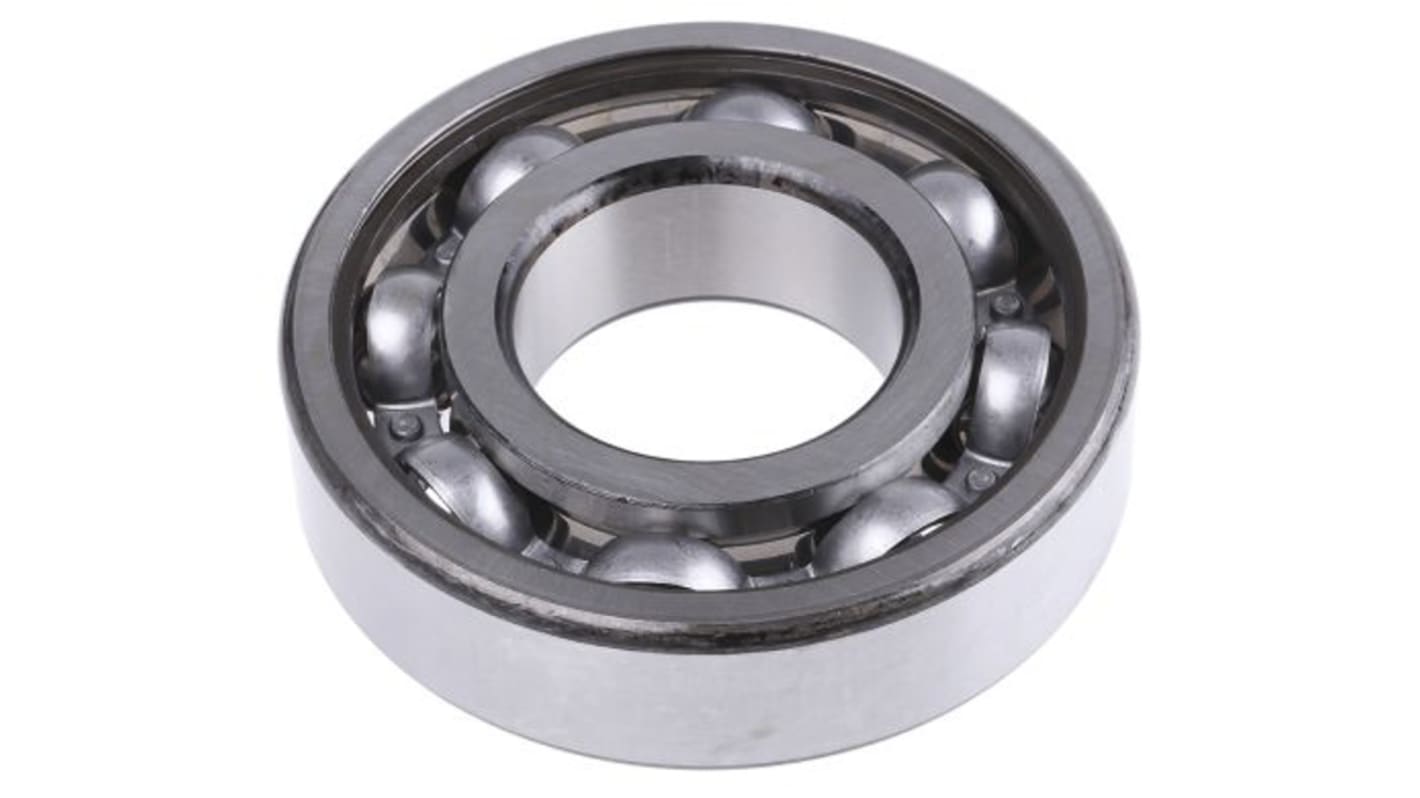

SKF Ball Bearing, Open-End Bearing Type, Plain Race, 75mm ID, 130mm OD - 6215
Need a reliable way of achieving axial and radial motion in both directions from your machinery? Try this single-row, deep-groove ball bearing from SKF. This type of bearing handles high speeds and heavy loads, so it's a practical choice in demanding industrial settings. Its open-sided style gives you easy access for relubrication and makes the product suited to settings where the contamination risk is low. Rugged steel construction makes it strong and corrosion-resistant, so you can be sure this is a practical, low-maintenance choice for long-term use. This material also means you can install the bearing safely in areas exposed to high levels of moisture.
Features & Benefits
• Robust sheet-metal cage maintains radial space between bearings for smooth movement
• Minimal friction thanks to noise and vibration optimisation, so achieves high rotational speeds
• Maximum limiting speed of 6,700r/min indicates mechanical robustness
• Dynamic load rating of 68.9kN to resist very high forces when in motion
• Minimal friction thanks to noise and vibration optimisation, so achieves high rotational speeds
• Maximum limiting speed of 6,700r/min indicates mechanical robustness
• Dynamic load rating of 68.9kN to resist very high forces when in motion
Applications
• Gearboxes
• Pumps
• Engineering
• Wind turbines
• Pumps
• Engineering
• Wind turbines
Is this ball bearing suitable for use in hot settings?
Yes. As SKF ball bearings are heat stabilised up to at least +120°C, you can trust this product to safely withstand high temperatures.
Specifications
Attribute | Value |
---|---|
Inside Diameter | 75mm |
Outside Diameter | 130mm |
Race Width | 25mm |
Ball Bearing Type | Single Row Deep Groove Ball Bearing |
Sealing Arrangement | Open Type |
Bearing Clearance | CN |
Material | Steel |
Ball Material | Steel |
Cage Material | Sheet Metal |
Number of Rows | 1 |
Static Load Rating | 49kN |
Dynamic Load Rating | 68.9kN |
Bore Type | Parallel |
Bearing Series | 2 Light |
Race Material | Steel |
Partial Bearing Code | 6215 |
Race Type | Plain |
